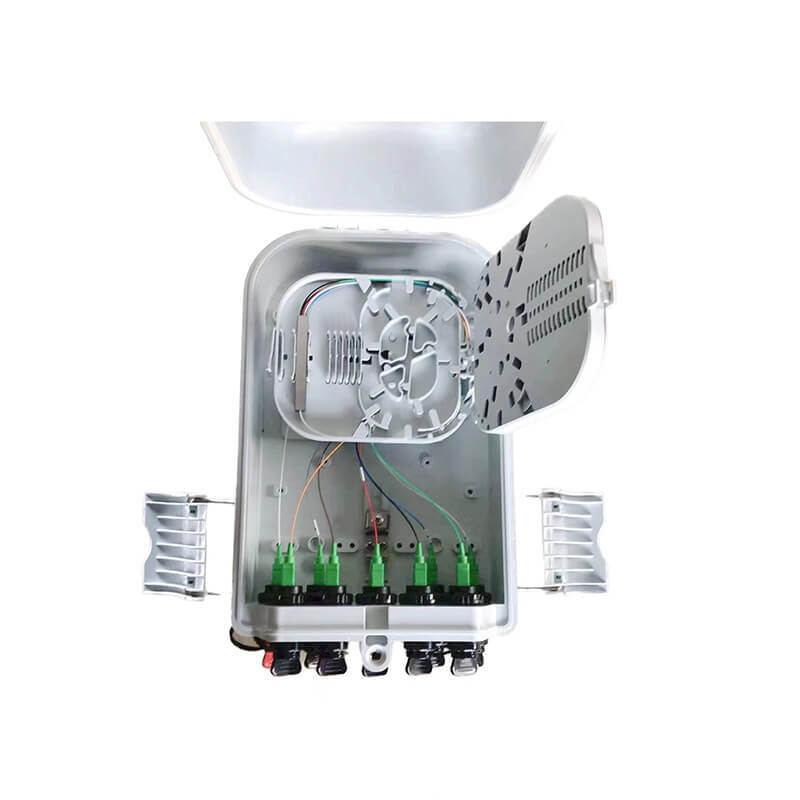

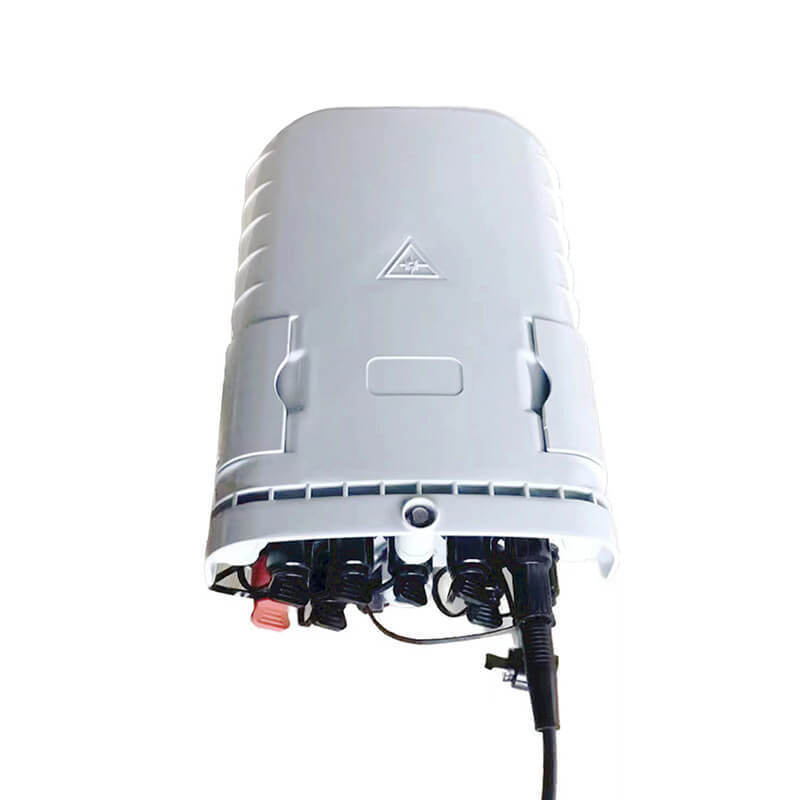

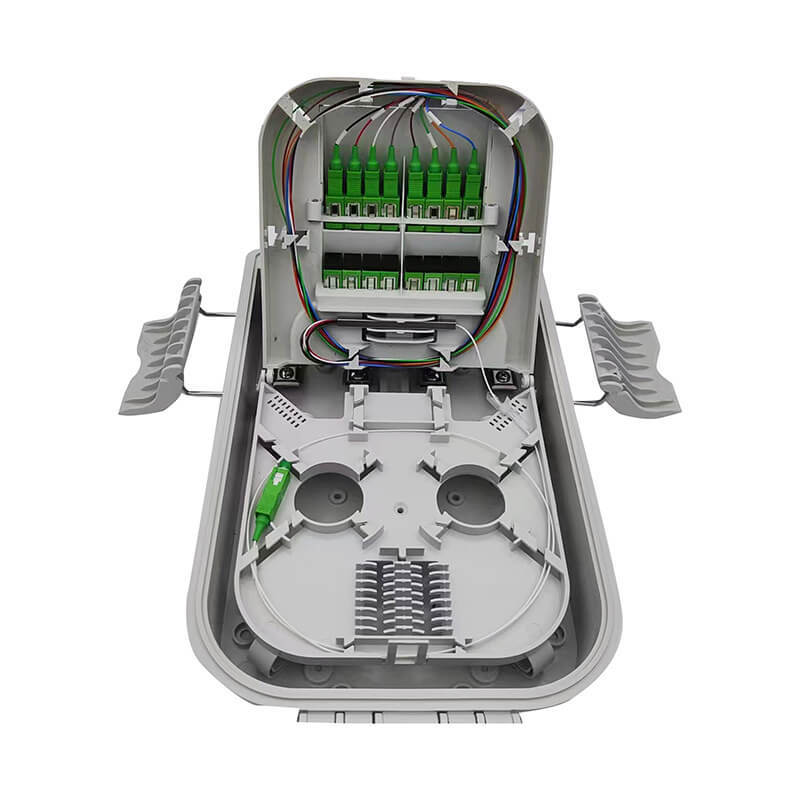

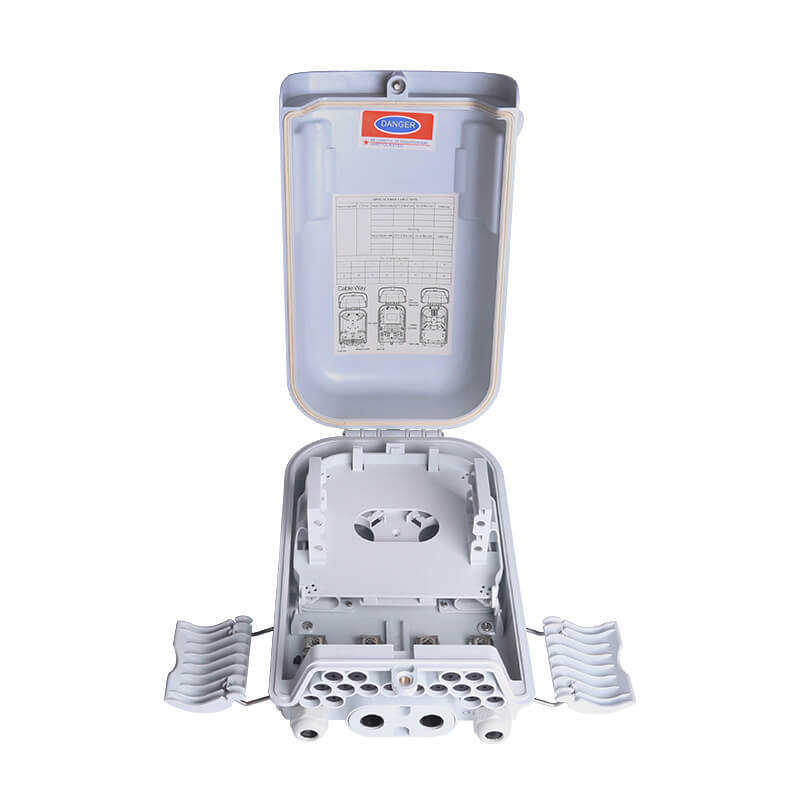

ABS FTTH 16 Core Fiber Distribution Box Indoor Outdoor IP55

ABS FTTH White/Black 16 Cores Fiber Optical Distribution Box For Indoor/outdoor. The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

• Total enclosed structure
• Material: PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP55
• Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution all in one
• Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adaptor installation, easy maintenance
• Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation
• Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses

• FTTH access network
• Telecommunication network
• CATV networks
• Data communications network
• Local area networks

• Wall-mounted installation: Drill 4 holes over the wall based on the size in table 1, place the expansion bolt Φ7.5*40, place the box to match up the holes and use bolt to fasten
• Pole-mounted installation: Fix 1 set of the easy pole ring to the telecom pole

• Users' Manual*1
• Key*1
• Accessories Bag *1
• Easy pole ring*2 (Option)
