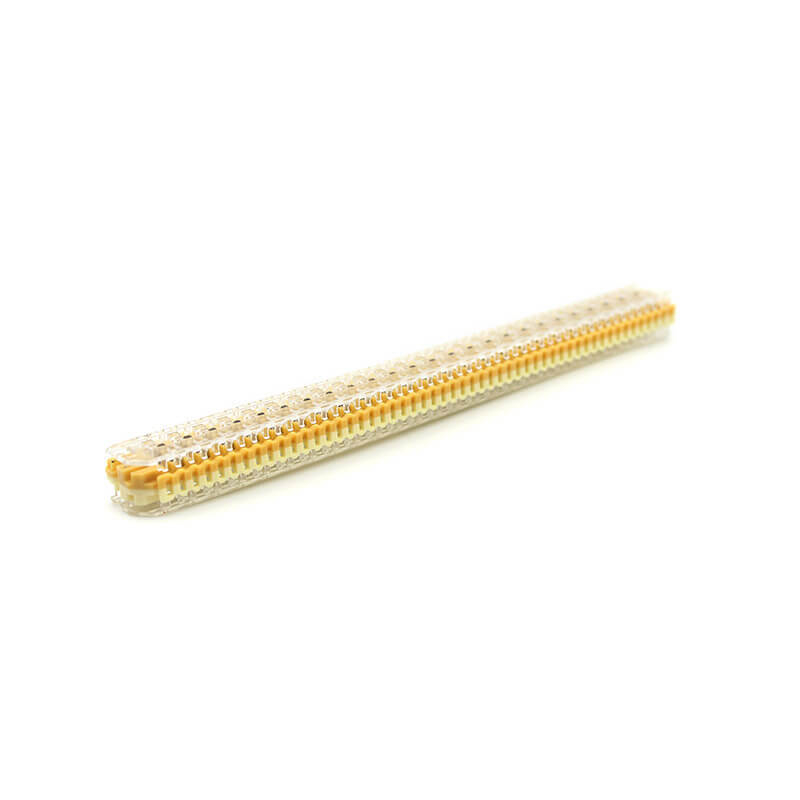

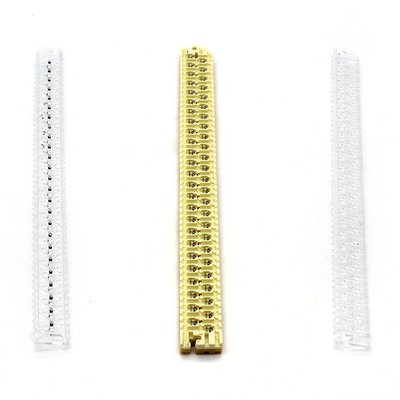

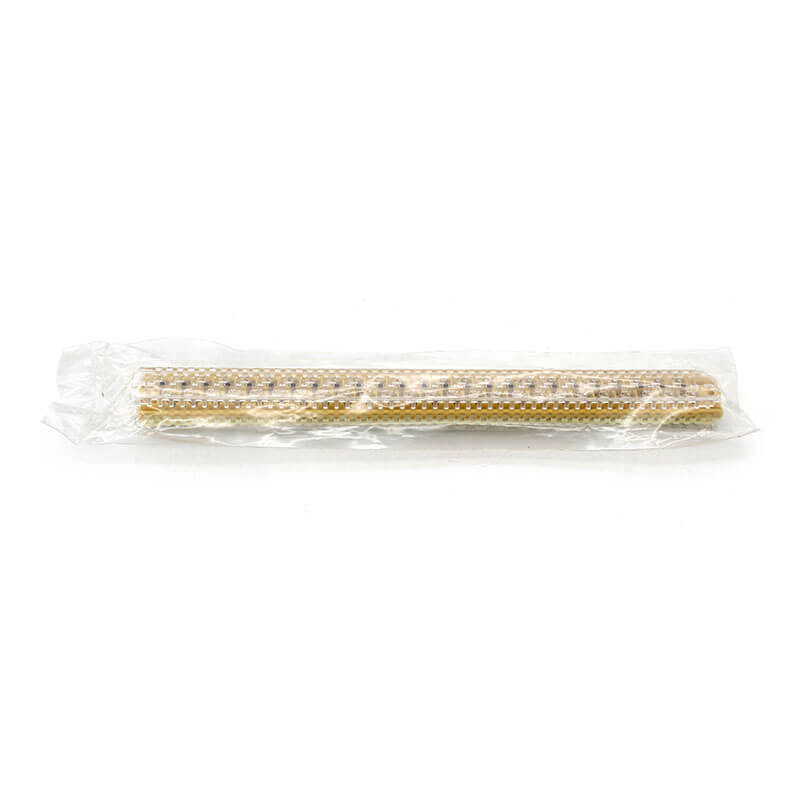

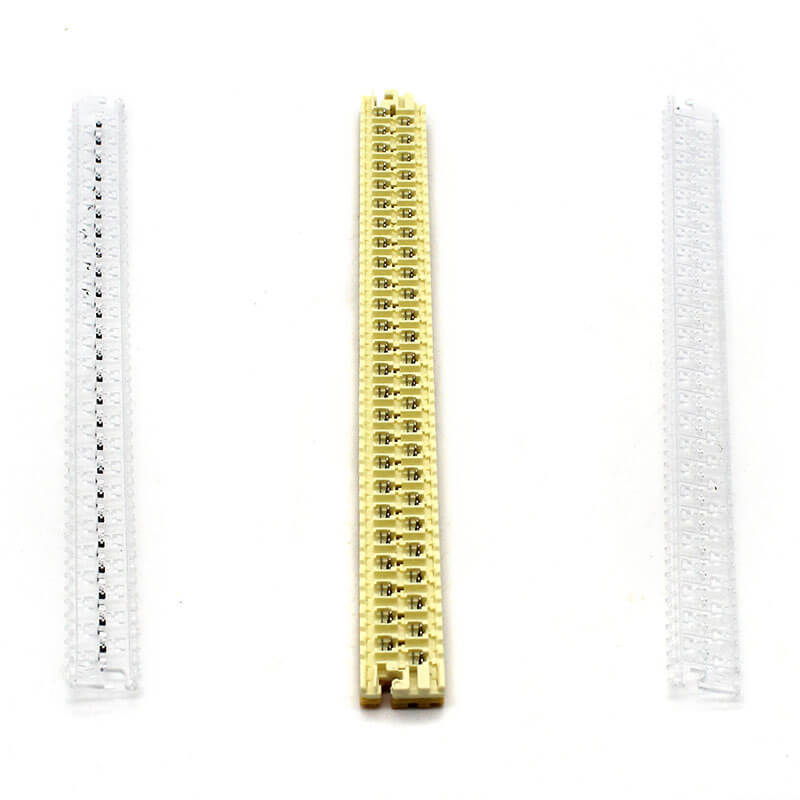

25 Pair Splicing Module 28-22 AWG Without Gel 1.65mm Diameter

25 Pair Splicing Module 28-22 AWG Without Gel 1.65mm Diameter
25 Pair Splicing Module 28-22 AWG Without Gel 1.65mm Diameter 25 Pair Splicing Module 28-22 AWG Without Gel 1.65mm Diameter 25 Pair Splicing Module 28-22 AWG Without Gel 1.65mm Diameter 25 Pair Splicing Module 28-22 AWG Without Gel 1.65mm Diameter

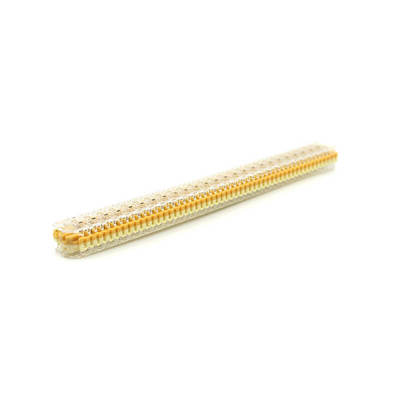

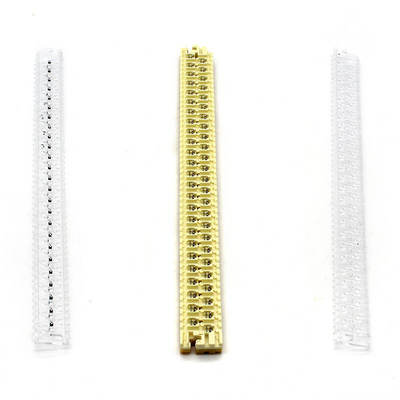

Grote Afbeelding :  25 Pair Splicing Module 28-22 AWG Without Gel 1.65mm Diameter

Productdetails:
Plaats van herkomst: CHINA
Merknaam: DOWELL
Modelnummer: DW-4000D
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 1000
Levertijd: 7-15 dagen
Betalingscondities: T/t
Levering vermogen: 5000 pcs per week
Contact

25 Pair Splicing Module 28-22 AWG Without Gel 1.65mm Diameter

Beschrijving
Woningmateriaal: PC (UL 94v-0) zonder gel contactenmateriaal: Ontzet fosfoorbrons
Kracht van het inbrengen van de draad: 45N typisch Draadtrekkracht: 40N typisch
Maximale isolatiediameter: 1,65 mm Kabelstijl en draaddiameter: 0.32-0.65 mm (28-22 AWG)
Markeren:

25 pair fiber optic splicing module

,

gel-free fiber optic splice module

,

1.65mm diameter fiber optic connector

28-22 AWG Cable 25 Pair Splicing Module Without Gel
25 Pair Splicing Module Without Gel

The 25-Pair Splicing Module without Gel is designed for connecting all plastic communication cables (diameter 0.32 - 0.65mm) through direct, bridge, and multiple connections. Widely used in communication circuits, it features a tuning fork type and sheet joint design for reliable connections. The clear cover module allows for easy pair identification and troubleshooting.

Specifications
Housing Material PC (UL 94v-0) without gel Contacts Material Tinned Phosphor Bronze
Wire Insertion Force 45N Typical Wire Pull-Out Force 40N Typical
Max Insulation Diameter 1.65 mm Cable Style and Wire Diameter 0.32-0.65 mm (28-22 AWG)
Storage Temperature -40℃～ 120℃ Operating Temperature -30℃～ 80℃
Relative Humidity <90% (@20℃) Atmospheric Pressure 70 Kpa～106 KPa
Insulation Resistance R≥10000M Ohm Contact Resistance Vary 1m Ohm
Constant Current 5KA 8/20u Sec Surge Current 10KA 8/20u Sec
Key Features
  • Plastic Housing: PC (UL 94v-0)
  • Gel-free design highly resistant to moisture and environmental elements
  • Withstands sudden temperature changes
  • Contacts: Tinned Phosphor Bronze
  • Cutting blades leftover cable: Stainless steel
  • Wire Insertion Force: 45N Typical
  • Wire Pull out Force: 40N Typical
  • Breaking strength or slip conductor: > 75% Wire breaking strength
  • Electrical contact by pressure
  • Safe and durable connection
  • Use Times: >100
25 Pair Splicing Module 28-22 AWG Without Gel 1.65mm Diameter 0
