LSZH Jacket SC UPC Fiber Optic Jumper Cord with Low Insertion Loss High Return Loss and Wide Temperature Range for Telecommunications

LSZH Jacket SC UPC Fiber Optic Jumper Cord with Low Insertion Loss High Return Loss and Wide Temperature Range for Telecommunications
LSZH Jacket SC UPC Fiber Optic Jumper Cord with Low Insertion Loss High Return Loss and Wide Temperature Range for Telecommunications LSZH Jacket SC UPC Fiber Optic Jumper Cord with Low Insertion Loss High Return Loss and Wide Temperature Range for Telecommunications LSZH Jacket SC UPC Fiber Optic Jumper Cord with Low Insertion Loss High Return Loss and Wide Temperature Range for Telecommunications

Grote Afbeelding :  LSZH Jacket SC UPC Fiber Optic Jumper Cord with Low Insertion Loss High Return Loss and Wide Temperature Range for Telecommunications

Productdetails:
Plaats van herkomst: CHINA
Merknaam: DOWELL
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 1000
Levertijd: 7-15 dagen
Betalingscondities: T/t
Levering vermogen: 10000 stuks per 7 dagen
Contact

LSZH Jacket SC UPC Fiber Optic Jumper Cord with Low Insertion Loss High Return Loss and Wide Temperature Range for Telecommunications

Beschrijving
Invoegverlies: ≤ 0,3 dB voor SM Retourverlies (behalve MM): ≥ 50 dB (SPC)
Herhalingsvermogen: 0.2 dB (500 cyclus geslaagd) Werkende Temperaturenwaaier: - 40°C tot +75°C
De Waaier van opslagtemperaturen: - 40°C tot +85°C Vochtigheid: 95% RH (niet-verpakking)
Markeren:

Low Insertion Loss Fiber Optic Jumper Cord

,

High Return Loss Fiber Optic Patch Cord

,

Wide Temperature Range Fiber Optic Cable

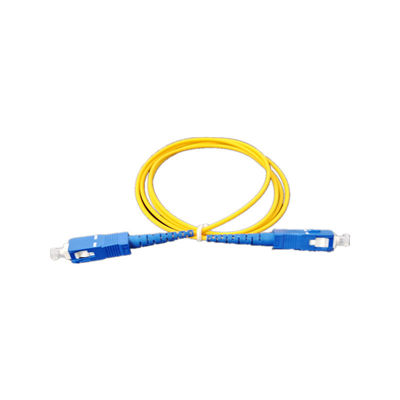

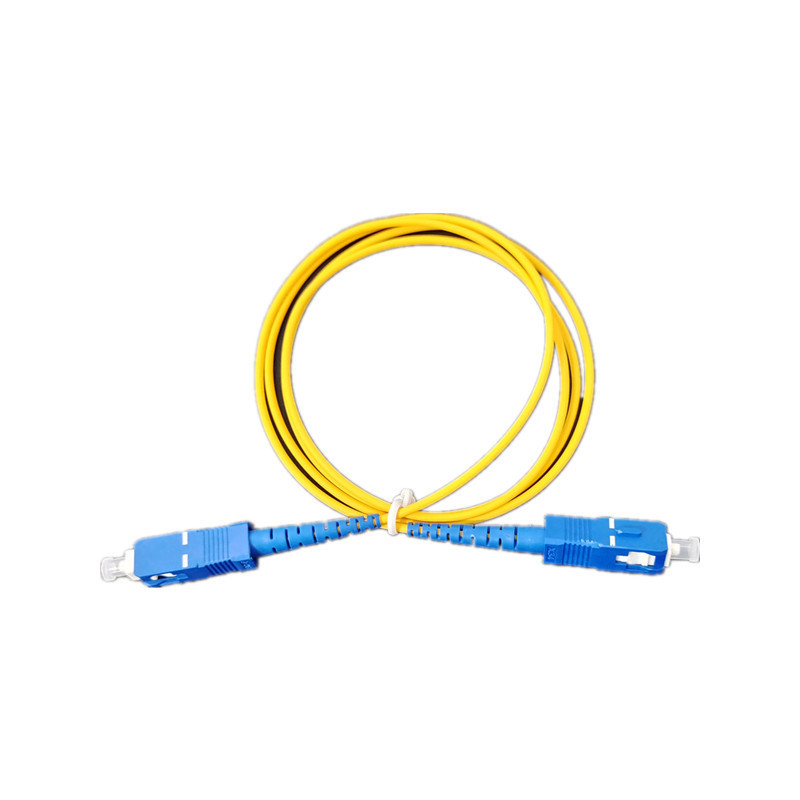

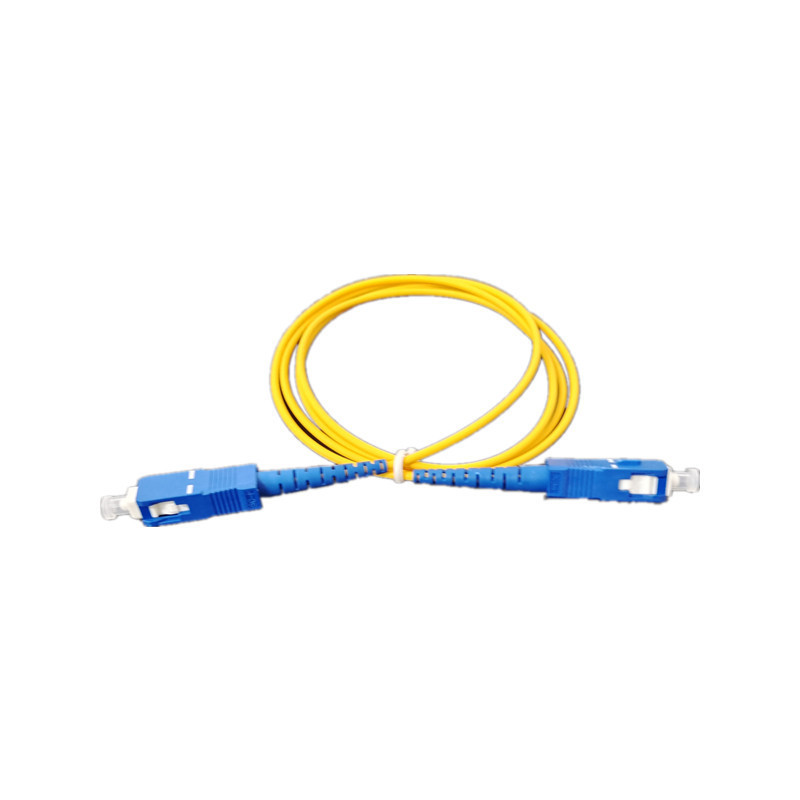

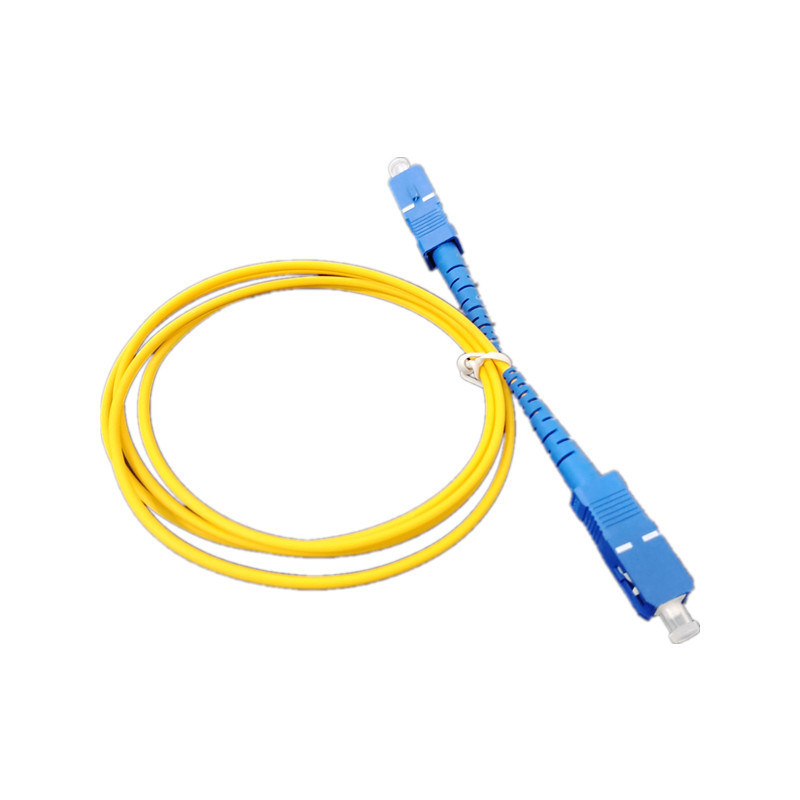

LSZH Jacket SC UPC- SC UPC Fiber Optic Jumper Cord Simplex SM
A fiber optic jumper cord is a short, flexible cable with connectors on both ends. Its primary purpose is to connect optical network components, such as:
  • Optical transceivers (in switches, routers, servers)
  • Patch panels
  • Fiber distribution frames
  • Test equipment (like OTDRs or optical power meters)
Specifications
Parameter Value
Insertion Loss ≤ 0.3 dB for SM
≤ 0.4 dB for MM
Return Loss (except MM) ≥ 45 dB (PC)
≥ 50 dB (SPC)
≥ 55 dB (UPC)
≥ 65 dB (APC)
Repeatability 0.2 dB (500 Cycle Passed)
Operating Temp Range -40°C to +75°C
Storage Temp Range -40°C to +85°C
Humidity 95% RH (Non Packaging)
Applications
  1. CATV System
  2. Telecommunications
  3. Optical Networks
  4. FTTH (Fiber to the Home)
  5. High speed transmission Systems
  6. Testing / Measurement Instruments
LSZH Jacket SC UPC Fiber Optic Jumper Cord with Low Insertion Loss High Return Loss and Wide Temperature Range for Telecommunications 0

label:

fibre patch leads,

fiber jumper cables,

multimode patch cable
