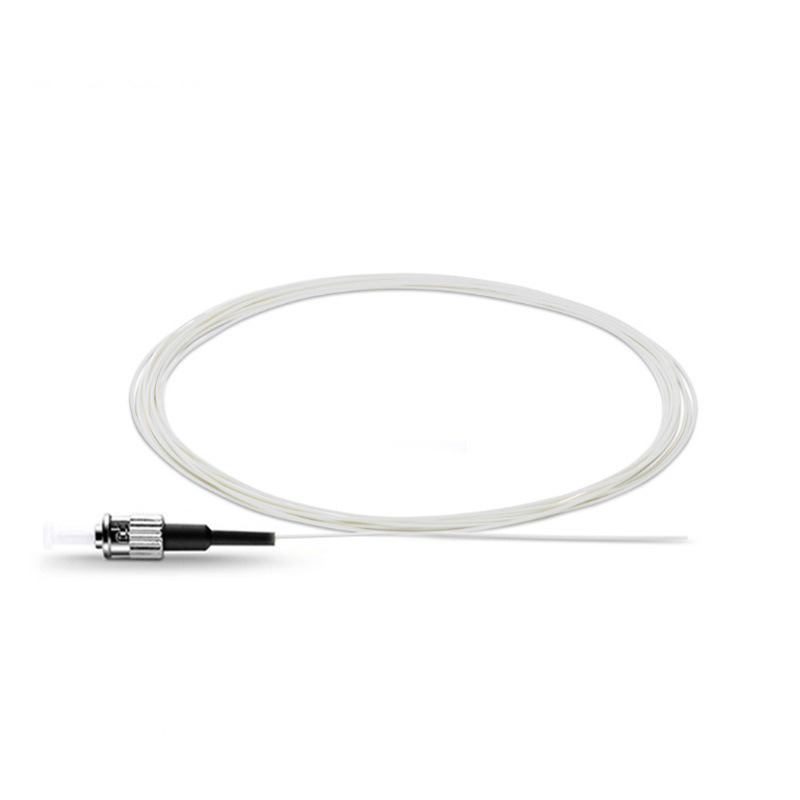

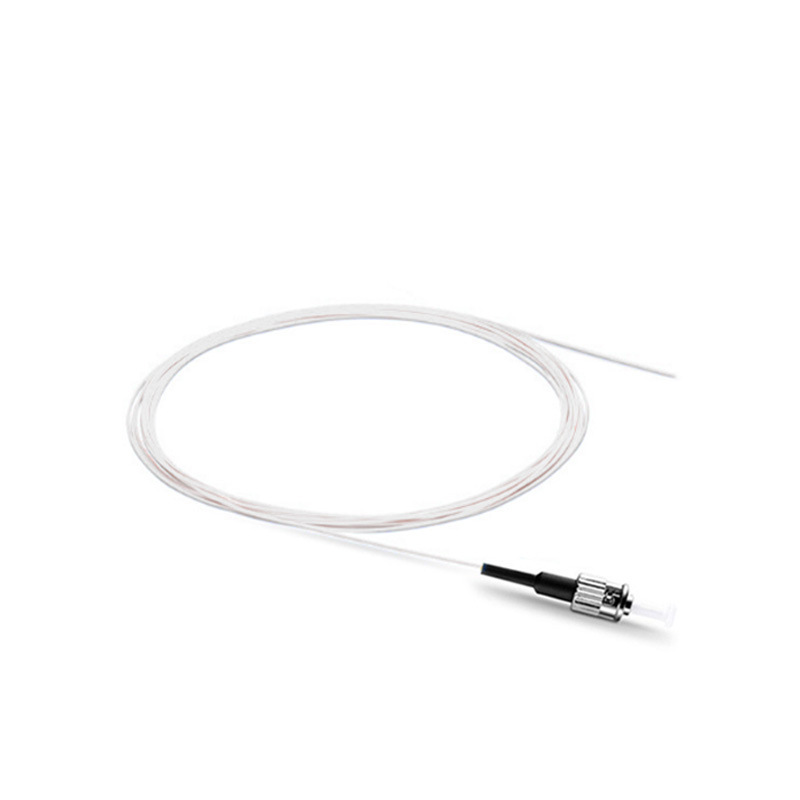

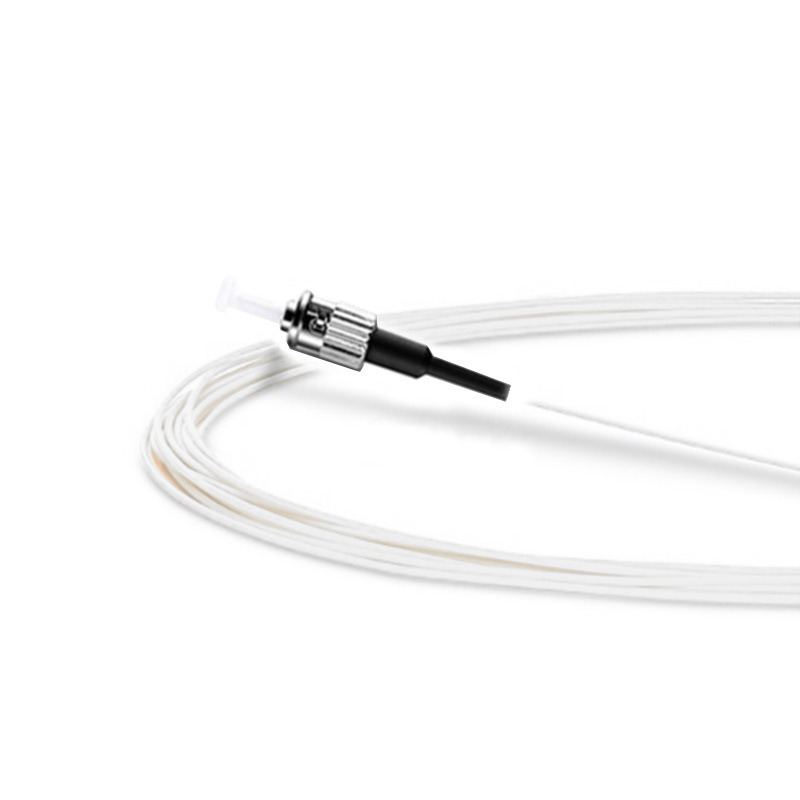

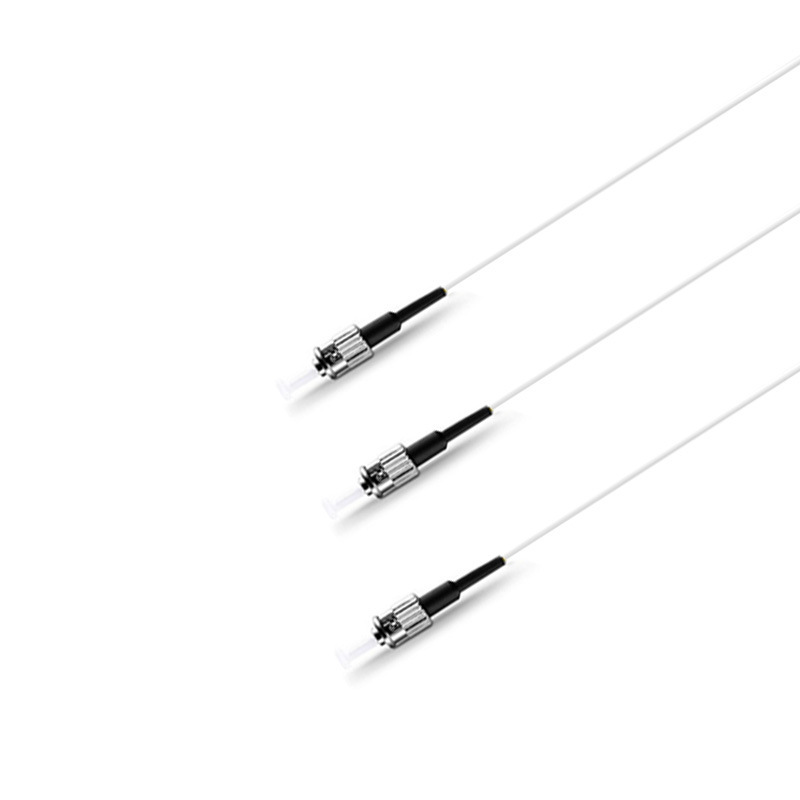

ST/UPC Simplex Fiber Optic Pigtail with LSZH Jacket and Low Insertion Loss for Reliable Termination

ST/UPC Simplex Fiber Optic Pigtail with LSZH Jacket and Low Insertion Loss for Reliable Termination
ST/UPC Simplex Fiber Optic Pigtail with LSZH Jacket and Low Insertion Loss for Reliable Termination ST/UPC Simplex Fiber Optic Pigtail with LSZH Jacket and Low Insertion Loss for Reliable Termination ST/UPC Simplex Fiber Optic Pigtail with LSZH Jacket and Low Insertion Loss for Reliable Termination ST/UPC Simplex Fiber Optic Pigtail with LSZH Jacket and Low Insertion Loss for Reliable Termination

Grote Afbeelding :  ST/UPC Simplex Fiber Optic Pigtail with LSZH Jacket and Low Insertion Loss for Reliable Termination

Productdetails:
Plaats van herkomst: CHINA
Merknaam: DOWELL
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 1000 pccs
Levertijd: 7-15 dagen
Betalingscondities: T/t
Levering vermogen: 5000 stuks per 7 dagen
Contact

ST/UPC Simplex Fiber Optic Pigtail with LSZH Jacket and Low Insertion Loss for Reliable Termination

Beschrijving
Invoegverlies (DB): 0,25 Retourverlies (DB): 55/65
Connectortypes: Aansluiting Vezeltypen: Multimode/singlemode
Markeren:

ST/UPC Fiber Optic Pigtail

,

LSZH Jacket Fiber Optic Patch Cord

,

Low Insertion Loss Fiber Optic Jumper

1M, 1.5m ST/UPC Simplex Fiber Optic Pigtail LSZH Jacket, 0.9mm
A fiber optic pigtail is a short, single-fiber cable with a factory-installed connector on one end and a bare, exposed fiber on the other. The name "pigtail" comes from this configuration—it looks like a short tail. The primary purpose of a pigtail is to terminate a fiber optic cable, either by splicing or connecting, in a controlled environment to provide a reliable, low-loss connection point.
Specification
CONNECTOR PERFORMANCE
LC, SC, ST and FC connectors Multimode Singlemode
at 850 and 1300 nm UPC at 1310 and 1550 nm
APC at 1310 and 1550 nm Typical
Insertion Loss (dB) 0.25 0.25
Return Loss (dB) - 55
Structure
  • Connectorized End: This end has a standard connector (like SC, LC, FC, ST, or MTP/MPO for multi-fiber) that is polished and precision-made in a factory. This ensures optimal performance.
  • Bare Fiber End: This is the "working" end. The fiber's buffer coating is stripped away, leaving the bare glass cladding and core exposed. This end is designed for splicing.
  • Cable Jacket: A short, ruggedized jacket (often 900µm or 2mm/3mm) protects the fiber. It is usually color-coded (orange for multimode, yellow for single-mode).
ST/UPC Simplex Fiber Optic Pigtail with LSZH Jacket and Low Insertion Loss for Reliable Termination 0
Application
  • Fiber Distribution Frames / Patch Panels
  • Optical Network Terminals (ONTs) in FTTx installations
  • Splice Closures for aerial, underground, or building entry points
  • Data Center Main Distribution Areas (MDAs)
  • Telecom Central Offices
ST/UPC Simplex Fiber Optic Pigtail with LSZH Jacket and Low Insertion Loss for Reliable Termination 1

label:

fibre patch leads,

fiber jumper cables,

multimode patch cable
