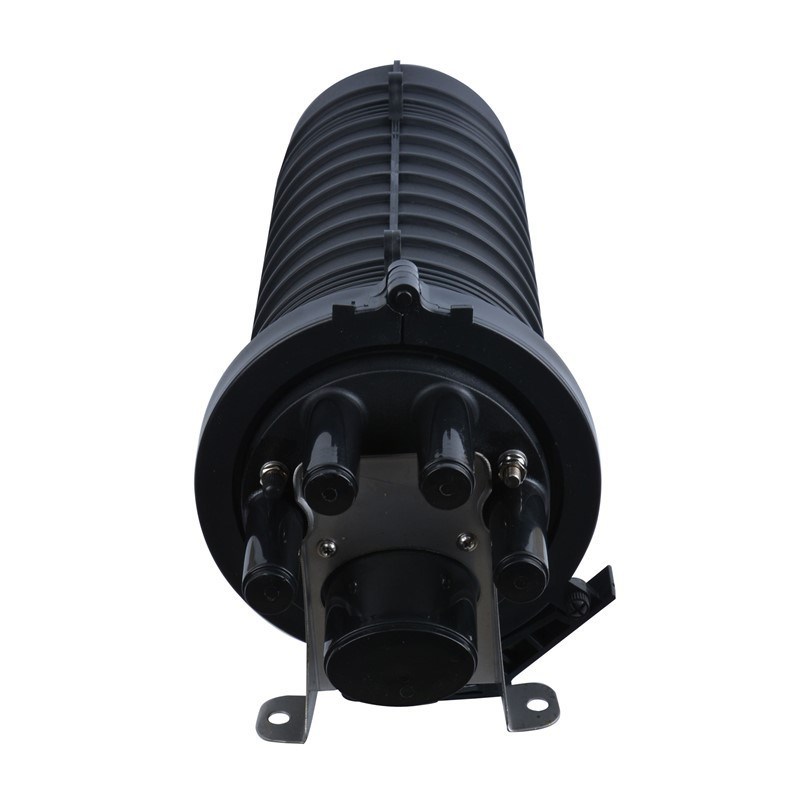

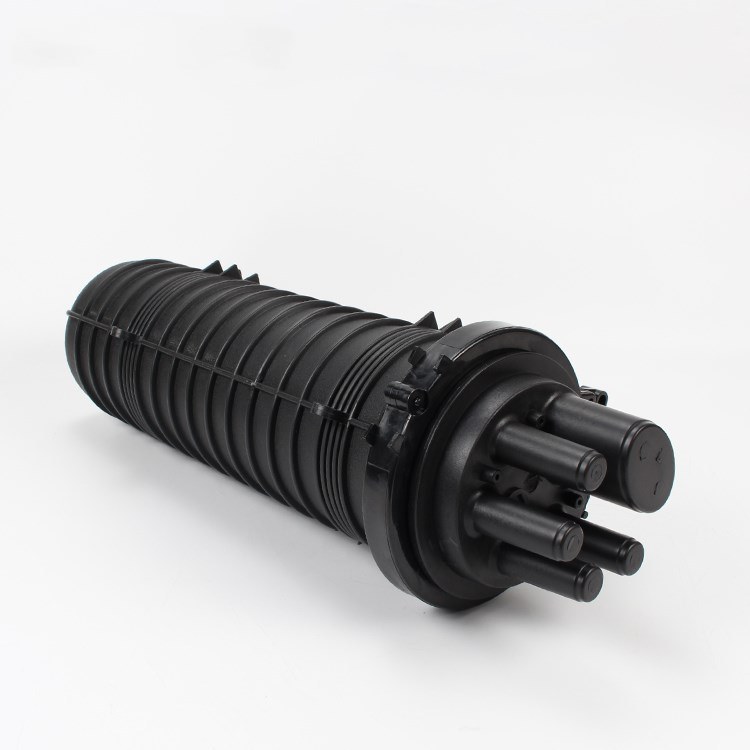

96FO Capacity Fiber Optic Splice Closure with 4+1 Ports for Outdoor Application

96FO Capacity Fiber Optic Splice Closure with 4+1 Ports for Outdoor Application
96FO Capacity Fiber Optic Splice Closure with 4+1 Ports for Outdoor Application
96FO Capacity Fiber Optic Splice Closure with 4+1 Ports for Outdoor Application 96FO Capacity Fiber Optic Splice Closure with 4+1 Ports for Outdoor Application 96FO Capacity Fiber Optic Splice Closure with 4+1 Ports for Outdoor Application 96FO Capacity Fiber Optic Splice Closure with 4+1 Ports for Outdoor Application 96FO Capacity Fiber Optic Splice Closure with 4+1 Ports for Outdoor Application

Grote Afbeelding :  96FO Capacity Fiber Optic Splice Closure with 4+1 Ports for Outdoor Application

Productdetails:
Plaats van herkomst: China
Merknaam: DOWELL
Modelnummer: FOSC-D4B-H
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 200 stcs
Levertijd: 7-15 dagen
Betalingscondities: T/T
Levering vermogen: 1000 stcs per 10 dagen
Contact

96FO Capacity Fiber Optic Splice Closure with 4+1 Ports for Outdoor Application

Beschrijving
Buiten Dimensie: 472 mm × 193 mm Gewicht (exclusief buitendoos): 3000 g ∙ 3600 g
Aantal in-/uitvoerpoorten: 4 + 1 stuk in het algemeen Diameter van glasvezelkabel: Φ8mm~Φ20mm

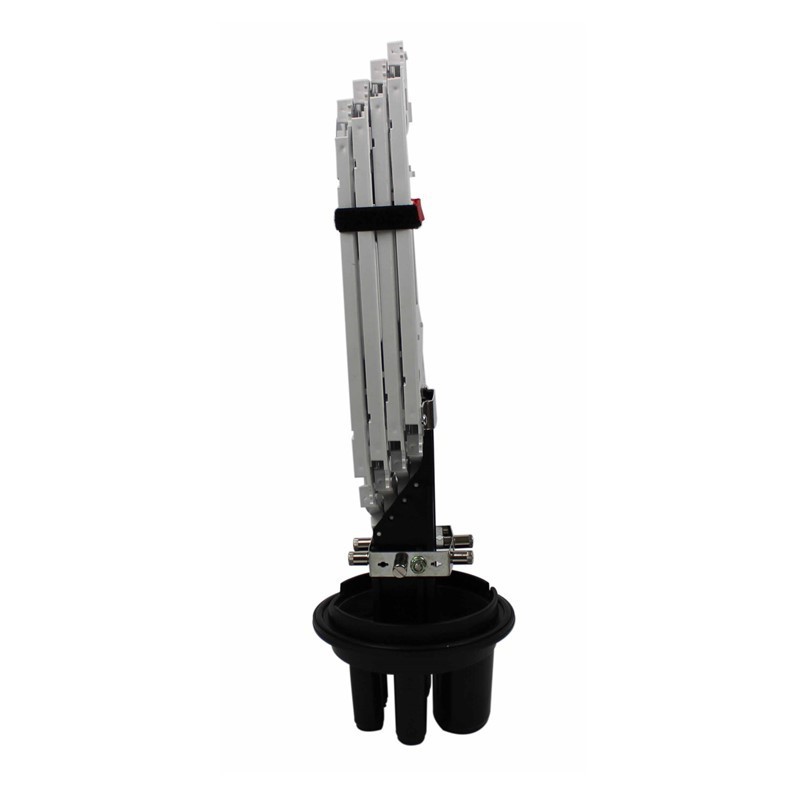

Capaciteit vanFOSC: Bunchy:24-96 (kernen), Ribbon: tot384 (kernen) Glasvezellasgoot (FOST): 4 bakjes (bos en lint)
Markeren:

96FO Capacity Fiber Optic Splice Closure

,

4+1 Ports Fiber Optic Splice Enclosure

,

Outdoor Application Fiber Joint Closure

24-96FO Fiber Optic Vertical Splice Enclosure IP65 Waterproof Dustproof
96FO Fiber Optic Vertical Splice Enclosure IP65 Waterproof Dustproof

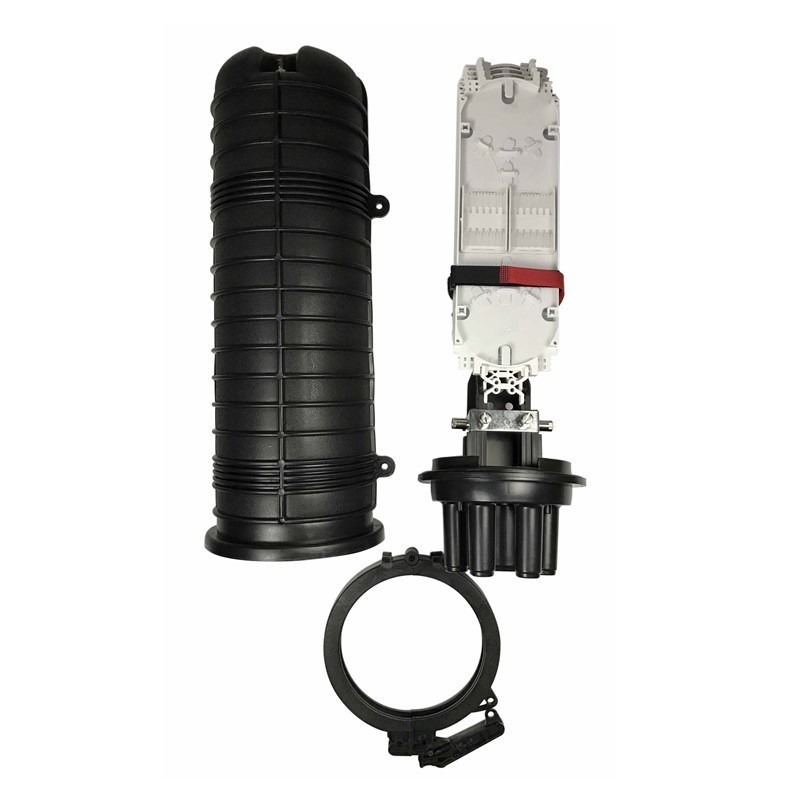

96 Core Optic Splice Joint Closure Dome-Vertical Types (1 in 4 out) is designed for distributing, splicing, and storing outdoor optical cables entering and exiting from the closure ends. Available in both direct connection and splitting connection configurations, this enclosure is suitable for overhead, pipeline manwell, and embedded installations. Compared to terminal boxes, this closure features enhanced sealing requirements including sealing rings and air valves.

Specifications
Splice tray count 4pcs
Splice capacity for each tray 24FO
Total Splice capacity 96FO
Number of inlet/out ports 4+1 pieces (standard)
Weight (excluding outside box) 3000g - 3600g
Applications

Ideal for pole and wall mounting applications:

96FO Capacity Fiber Optic Splice Closure with 4+1 Ports for Outdoor Application 0

Strand overhead installation:

96FO Capacity Fiber Optic Splice Closure with 4+1 Ports for Outdoor Application 1
Installation Guide
  1. Open the closure
  2. Determine length of fiber cable to be fixed and stripped inside FOSC
  3. Strip off protective coats of fiber cable and fiber
  4. Separate fiber cores and prepare work prior to fixing fiber cable
  5. Fix reinforced core, and pyrocondense, fix and seal fiber cable
  6. Splice fibers
  7. Install heat shrinkable protective sleeve and house fibers
  8. Check up comprehensively
  9. Assemble FOSC housing and fix FOSC

label:

outdoor fiber splice enclosure,

fiber splice case,

cable splice enclosure
