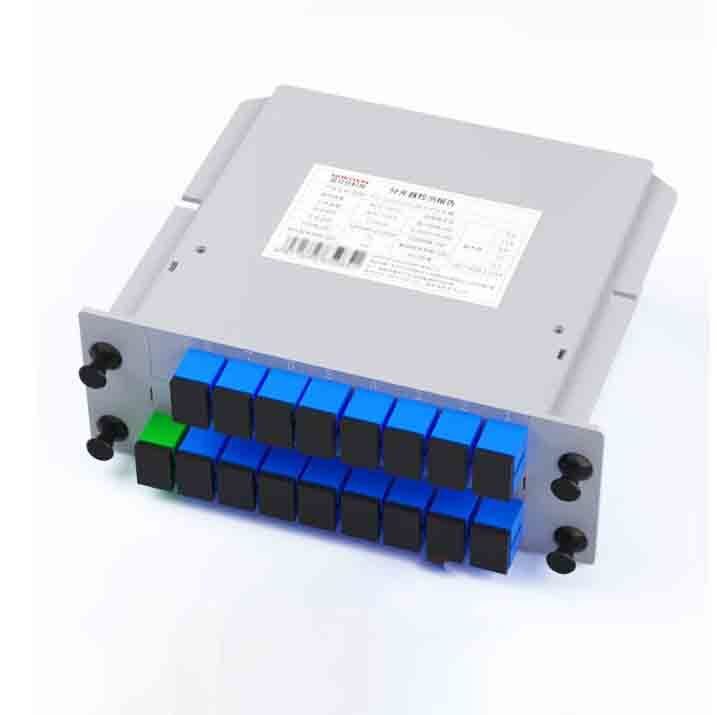

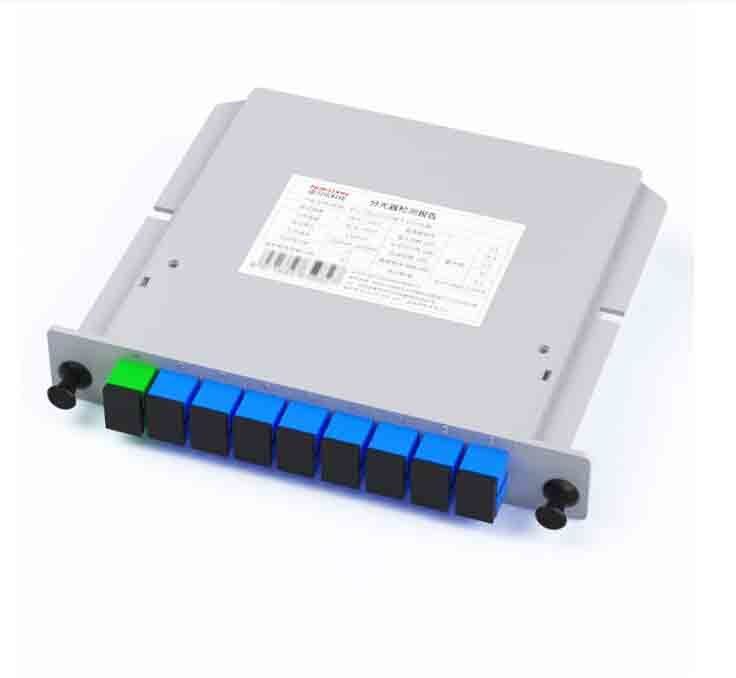

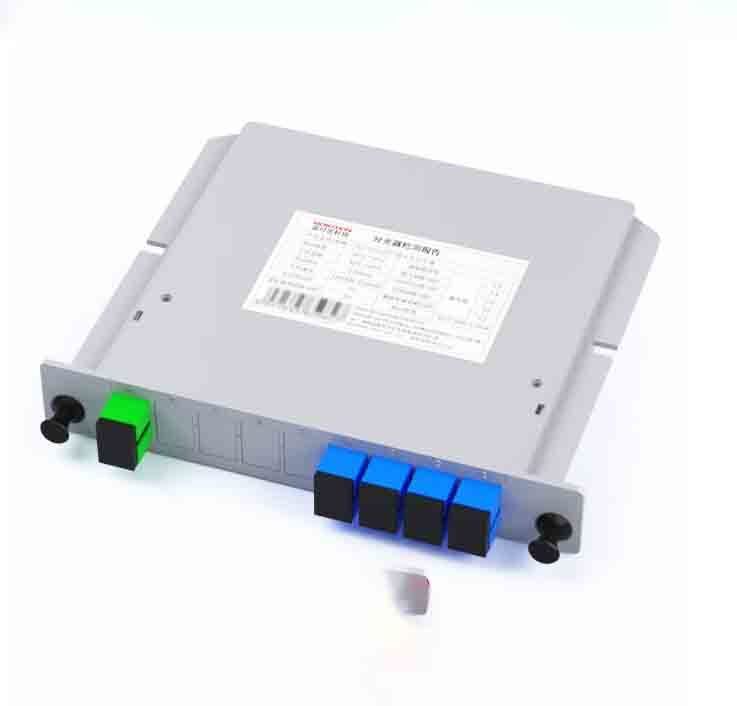

Single Mode PLC Splitter with 1×4 1×8 1×16 1×32 Split Ratios and SC UPC Connector in Metal Card Shell

Single Mode PLC Splitter with 1×4 1×8 1×16 1×32 Split Ratios and SC UPC Connector in Metal Card Shell
Single Mode PLC Splitter with 1×4 1×8 1×16 1×32 Split Ratios and SC UPC Connector in Metal Card Shell Single Mode PLC Splitter with 1×4 1×8 1×16 1×32 Split Ratios and SC UPC Connector in Metal Card Shell Single Mode PLC Splitter with 1×4 1×8 1×16 1×32 Split Ratios and SC UPC Connector in Metal Card Shell Single Mode PLC Splitter with 1×4 1×8 1×16 1×32 Split Ratios and SC UPC Connector in Metal Card Shell
Basisinformatie
Plaats van herkomst: China
Merknaam: DOWELL
Modelnummer: DW-C1X8
Min. bestelaantal: 100 stuks
Levertijd: 7-15 dagen
Betalingscondities: T/T
Levering vermogen: 500 stks per 10 dagen
Beste prijs Contact nu
Gedetailleerde informatie
Parameter: 1×4,1×8,1×16,1×32 Connector: SC, FC, LC
Vezel: SM G657A of op maat Golflengte: 1260 ~ 1650nm
Invoegverlies: ≤7,4dB(1×8), ≤10,8dB(1×16), ≤14,0dB(1×32) Retourverlies: ≥ 55 dB
Bedrijfstemperatuur: -40℃ ~ +85℃ Opslagtemperatuur: -45℃ ~ +85℃
Markeren:

1×4 1×8 1×16 1×32 PLC Splitter

,

SC UPC Connector PLC Splitter

,

Metal Card Shell PLC Splitter

Productomschrijving

Single Mode 1X2 1X4 1X8 1X16 SC UPC Insert Optical Fiber Card PLC Splitter PLC optical splitter is a passive optical component, designed to be inserted directly into optical distribution frame and fiber cabinet. It evenly splits one optical signal into multiple output ports, features low insertion loss, high return loss and stable optical performance. Widely used in FTTH GPON / EPON PON network for telecom, ISP and FTTX infrastructure projects. OEM & customized label and

label:

1x8 PLC Splitser,

SC APC Splitter,

PLC-splittersmodule
